Shapes Grouping Shapes

Demonstrates how to group shapes, including creating nested groups (e.g., groups of groups) as well as perform various operations on the group.

// Open a workbook that contains a set of ungrouped shapes on the active worksheet.
SpreadsheetGear.IWorkbook workbook =
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;

// Get a reference to the worksheet's shapes collection.
SpreadsheetGear.Shapes.IShapes shapes = worksheet.Shapes;

 * GROUP 1
 * Group Blue Rectangles
// Get references to the 4 smaller blue rectangle shapes.
SpreadsheetGear.Shapes.IShape rectTopLeft = shapes["Rectangle Top Left"];
SpreadsheetGear.Shapes.IShape rectTopRight = shapes["Rectangle Top Right"];
SpreadsheetGear.Shapes.IShape rectBottomLeft = shapes["Rectangle Bottom Left"];
SpreadsheetGear.Shapes.IShape rectBottomRight = shapes["Rectangle Bottom Right"];

// Create an IShape[] array and add all 4 rectangles to the array.
var shapesArray = new SpreadsheetGear.Shapes.IShape[] { rectTopLeft, rectTopRight,
    rectBottomLeft, rectBottomRight };

// Create an IShapeRange with the above array.
SpreadsheetGear.Shapes.IShapeRange shapeRange = shapes.GetShapeRange(shapesArray);

// Group the shape range, which will return an IShape that allows for further
// modification to all shapes in the group (see operations performed on the "Final
// Group" at the bottom of this sample).
SpreadsheetGear.Shapes.IShape rectGroup = shapeRange.Group();

// Rename this group for easier identification.
rectGroup.Name = "GROUP 1 - Blue Rectangle Group";

 * GROUP 2
 * Group Red Arrows
// Similar to the blue rectangles, get a reference to the desired shapes...
SpreadsheetGear.Shapes.IShape arrowRight = shapes["Arrow Right"];
SpreadsheetGear.Shapes.IShape arrowDown = shapes["Arrow Down"];
SpreadsheetGear.Shapes.IShape arrowLeft = shapes["Arrow Left"];
SpreadsheetGear.Shapes.IShape arrowUp = shapes["Arrow Up"];
// ...create an IShapeRange from an array of the arrow shapes...
shapesArray = new SpreadsheetGear.Shapes.IShape[] { arrowRight, arrowDown,
    arrowLeft, arrowUp };
shapeRange = shapes.GetShapeRange(shapesArray);
// ...group them...
SpreadsheetGear.Shapes.IShape arrowGroup = shapeRange.Group();
// ...and rename the group for easier identification.
arrowGroup.Name = "GROUP 2 - Red Arrow Group";

 * GROUP 3
 * Create a "Group of Groups" by grouping the Blue Rectangle Group and the Red Arrow
 * Group.
shapesArray = new SpreadsheetGear.Shapes.IShape[] { rectGroup, arrowGroup };
shapeRange = shapes.GetShapeRange(shapesArray);
SpreadsheetGear.Shapes.IShape rectArrowGroup = shapeRange.Group();
rectArrowGroup.Name = "GROUP 3 - Blue Rectangle Group / Red Arrow Group";

 * GROUP 4
 * Further nest groups by grouping the large gray "Rectangle Background" with
 * the Blue Rectangle / Red Arrow Group" (so a Group within a Group within a Group).
SpreadsheetGear.Shapes.IShape rectBackground = shapes["Rectangle Background"];
shapesArray = new SpreadsheetGear.Shapes.IShape[] { rectBackground, rectArrowGroup };
shapeRange = shapes.GetShapeRange(shapesArray);
SpreadsheetGear.Shapes.IShape finalGroup = shapeRange.Group();
finalGroup.Name = "GROUP 4 - Final Group";

 * Perform various operation to the "Final Group".

// Move the "Final Group" 1 inch (72 Points) down and to the right.

// Scale up the size of the group by 150%, scaling from the middle of the group.
finalGroup.ScaleHeight(1.5, true, SpreadsheetGear.Shapes.ScaleFrom.Middle);
finalGroup.ScaleWidth(1.5, true, SpreadsheetGear.Shapes.ScaleFrom.Middle);
Run This Sample

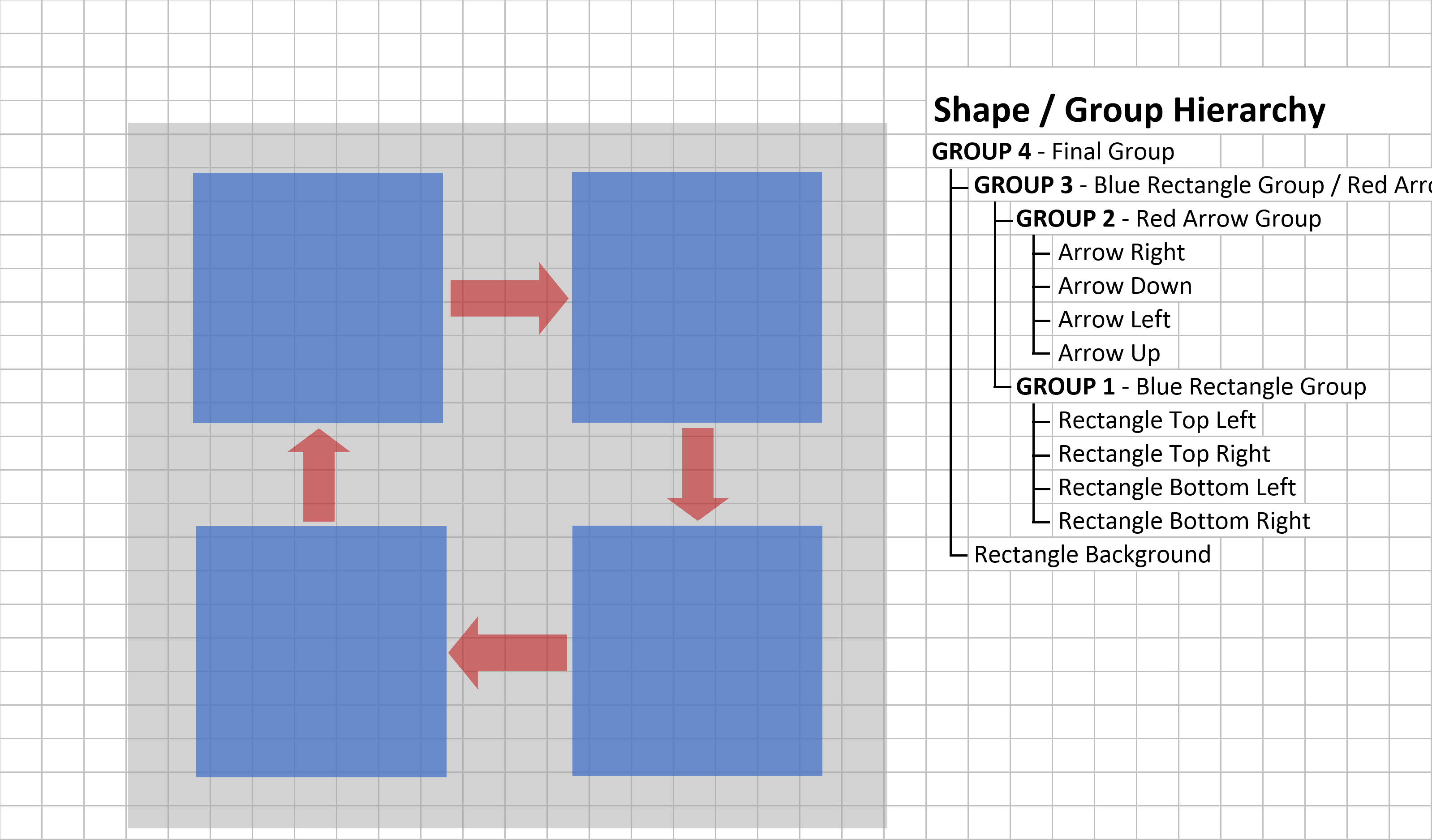

Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.

Supporting Files

The following files are utilized by this sample:
