Charting Gantt Chart

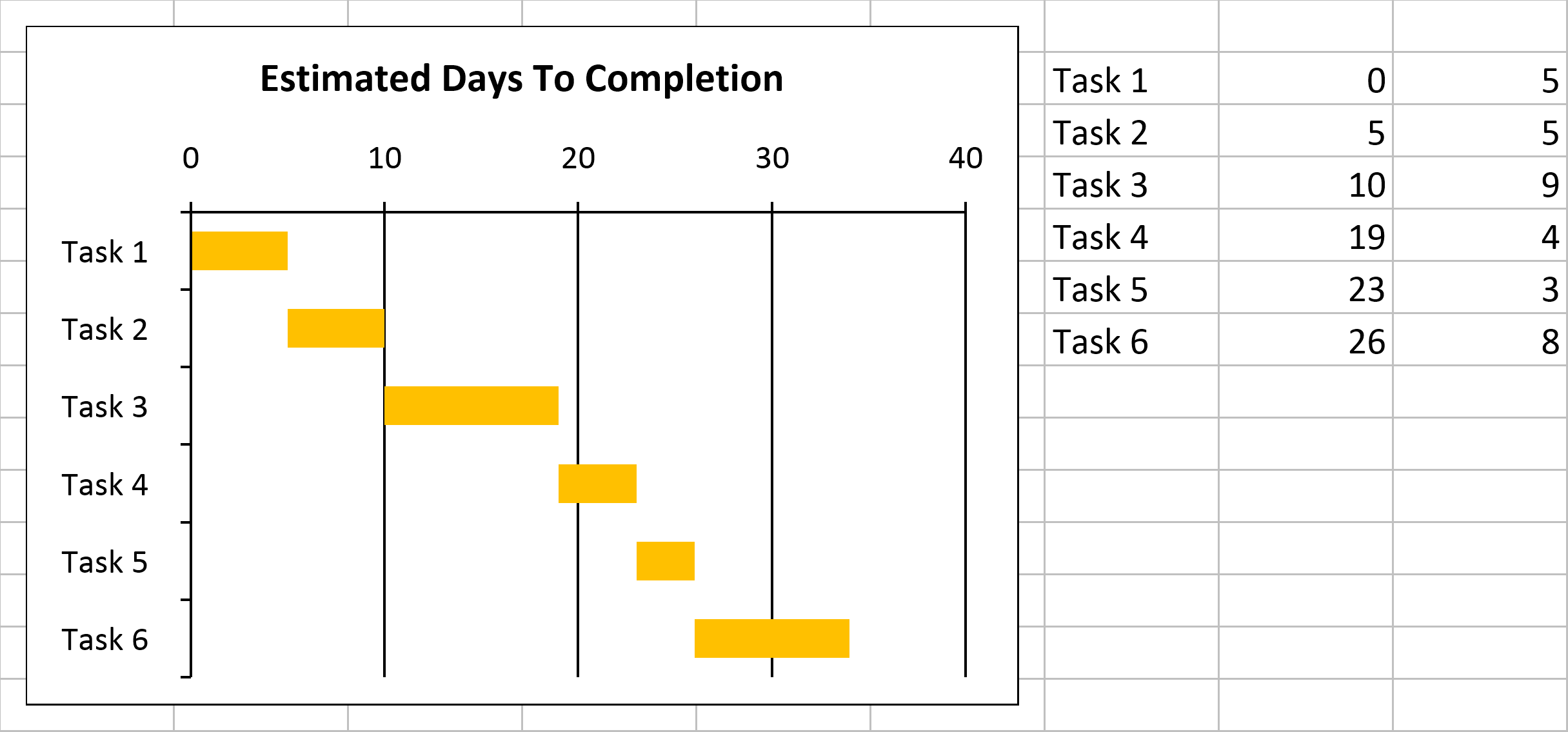

Use stacked bars and various formatting to simulate a gantt chart.

// Create a new workbook and get a reference to the active worksheet, window info,
// and cells.
SpreadsheetGear.IWorkbook workbook = SpreadsheetGear.Factory.GetWorkbook();
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;
SpreadsheetGear.IRange cells = worksheet.Cells;

// Load category labels using multiple cell text reference and iteration.
int task = 1;
foreach (SpreadsheetGear.IRange cell in cells["G2:G7"])
    cell.Formula = "Task " + task++;

// Start with zero and use formulas to calculate each additional start value.
cells["H2"].Formula = "0";
cells["H3:H7"].Formula = "=H2+I2";

// Load random duration values
cells["I2:I7"].Formula = "=INT(RAND() * 10) + 2";

// Add a chart to the worksheet's shape collection.
// NOTE: Calculate the coordinates of the chart by converting row and column
//       coordinates to points.  Use fractional row and column values to get
//       coordinates anywhere in between row and column boundaries.
double left = windowInfo.ColumnToPoints(0.15);
double top = windowInfo.RowToPoints(0.5);
double right = windowInfo.ColumnToPoints(5.85);
double bottom = windowInfo.RowToPoints(13.5);
SpreadsheetGear.Charts.IChart chart =
    worksheet.Shapes.AddChart(left, top, right - left, bottom - top).Chart;

// Set the chart's source data range, plotting series in columns.
SpreadsheetGear.IRange source = cells["G2:I7"];
chart.SetSourceData(source, SpreadsheetGear.Charts.RowCol.Columns);

// Set the chart type to stacked bar to simulate a gantt chart.
chart.ChartType = SpreadsheetGear.Charts.ChartType.BarStacked;

// Set the distance between bars as a percentage of the bar width.
chart.ChartGroups[0].GapWidth = 100;

// Hide the first (Start) series values by setting the fill to none.
chart.SeriesCollection[0].Format.Fill.Visible = false;

// Change the theme color of the second (Duration) series.
chart.SeriesCollection[1].Format.Fill.ForeColor.ThemeColor =

// Reverse the category axis so that values are shown top to bottom.
chart.Axes[SpreadsheetGear.Charts.AxisType.Category].ReversePlotOrder = true;

// Add a chart title and change the font size.
chart.HasTitle = true;
chart.ChartTitle.Text = "Estimated Days To Completion";
chart.ChartTitle.Font.Size = 12;

// Delete the legend.
chart.HasLegend = false;
Run This Sample
Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
