Shapes Lines Line Weight

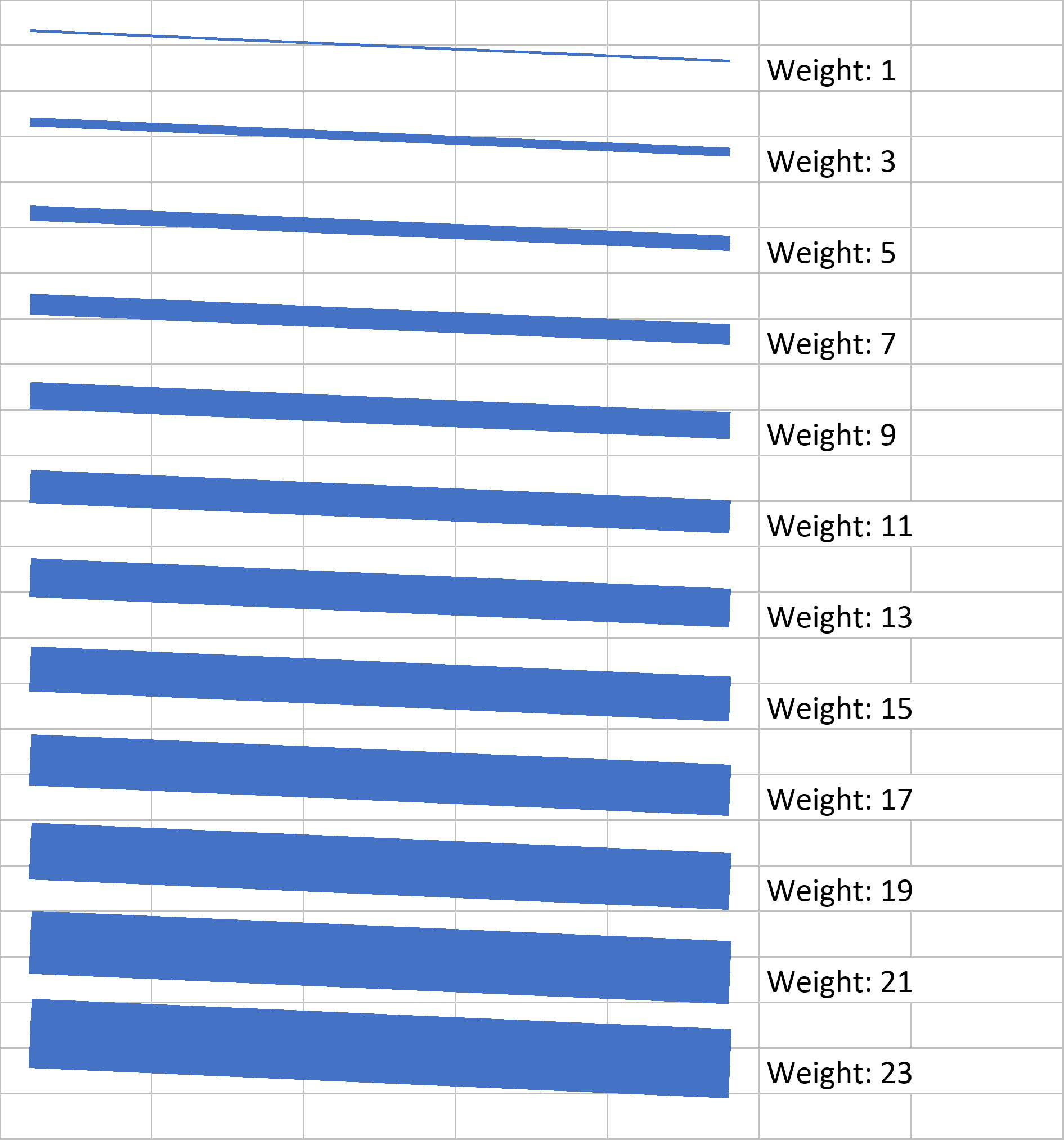

Adds lines with various weights.

// Create a new workbook and some local variables.
SpreadsheetGear.IWorkbook workbook = SpreadsheetGear.Factory.GetWorkbook();
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;

// We will position lines relative to a given range, starting in Row 2.
SpreadsheetGear.IRange currentRow = worksheet.Cells["2:2"];

// Position line across Columns A:E
double xStart = 10;
double xEnd = windowInfo.ColumnToPoints(5) - 10;

// Loop will generate increasingly thicker lines.
for (int i = 0; i < 12; i++)
    // Calculate Weight (in Points).
    double weight = i * 2 + 1;

    // Position line relative to "currentRow" and add a slight slope to it.
    double yStart = windowInfo.RowToPoints(currentRow.Row) - 5;
    double yEnd = yStart + 10;

    // Add the line and set its weight.
    SpreadsheetGear.Shapes.IShape lineShape = worksheet.Shapes.AddLine(xStart, yStart,
        xEnd, yEnd);
    SpreadsheetGear.Shapes.ILineFormat lineFormat = lineShape.Line;
    lineFormat.Weight = weight;

    // Provide some information in an adjacent cell to indicate line weight.
    currentRow[0, 5].Value = $"Weight: {weight}";

    // Offset down 2 rows from the current row to prep next line.
    currentRow = currentRow.Offset(2, 0);
Run This Sample
Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
