Shapes Lines Line Dash Style

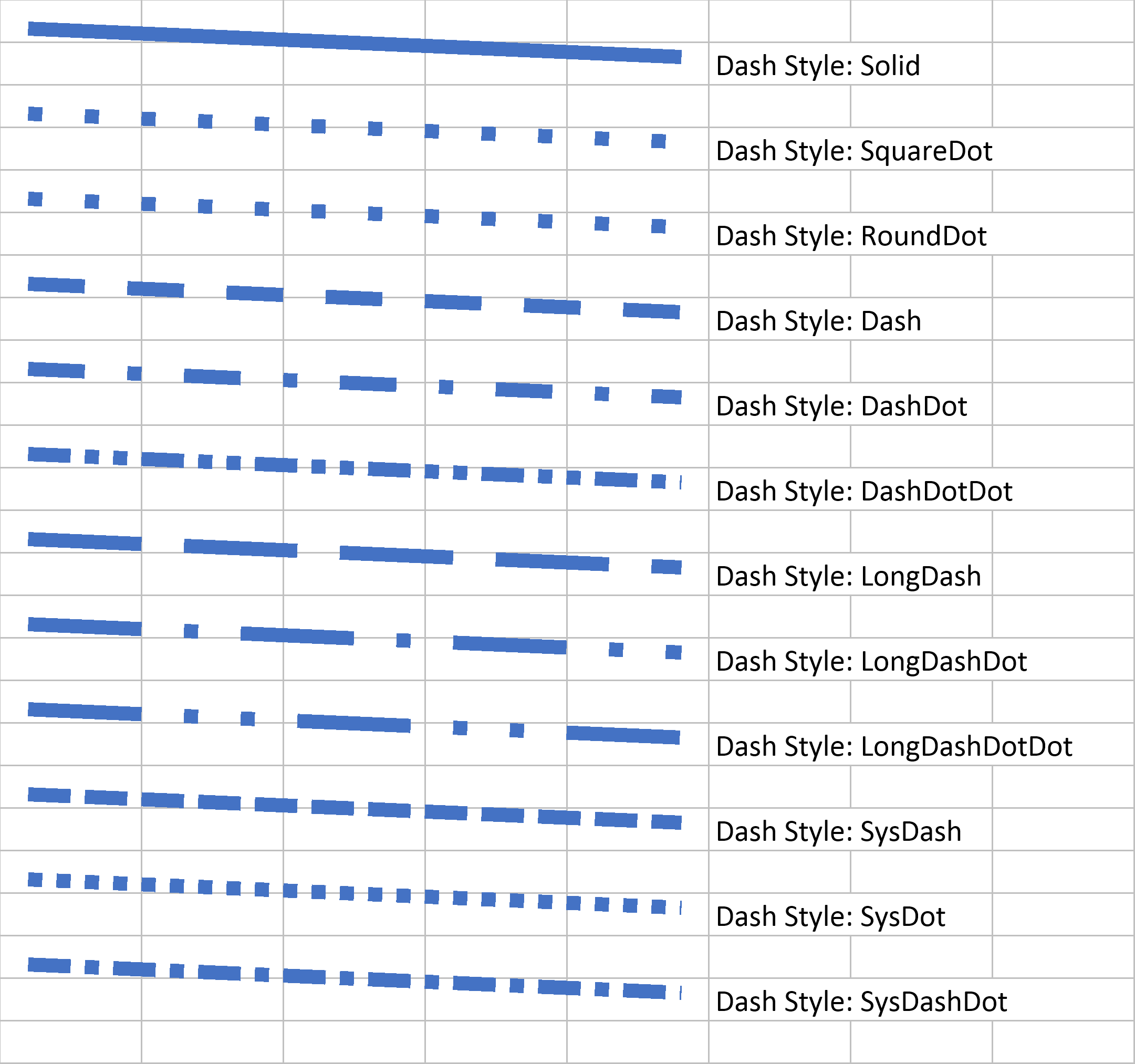

Adds lines using all of the various dash styles defined in SpreadsheetGear.Shapes.LineDashStyle.

using System.Linq;

// Create a new workbook and some local variables.
SpreadsheetGear.IWorkbook workbook = SpreadsheetGear.Factory.GetWorkbook();
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;

// We will position lines relative to a given range, starting in Row 2.
SpreadsheetGear.IRange currentRow = worksheet.Cells["2:2"];

// Position line across Columns A:E
double xStart = 10;
double xEnd = windowInfo.ColumnToPoints(5) - 10;

// Convert LineDashStyle enum options into an IEnumerable.
var lineDashStyles = System.Enum.GetValues(typeof(SpreadsheetGear.Shapes.LineDashStyle))

// Iterate over each Dash Style.
foreach (var lineDashStyle in lineDashStyles)
    // Position line relative to "currentRow" and add a slight slant to it.
    double yStart = windowInfo.RowToPoints(currentRow.Row) - 5;
    double yEnd = yStart + 10;

    // Add the line and set its weight.
    SpreadsheetGear.Shapes.IShape lineShape = worksheet.Shapes.AddLine(xStart, yStart,
        xEnd, yEnd);
    SpreadsheetGear.Shapes.ILineFormat lineFormat = lineShape.Line;
    lineFormat.Weight = 5;

    // Set Dash Style
    lineFormat.DashStyle = lineDashStyle;

    // Provide some information in an adjacent cell to indicate dash style.
    currentRow[0, 5].Value = $"Dash Style: {lineDashStyle}";

    // Offset down 2 rows from the current row to prep next line.
    currentRow = currentRow.Offset(2, 0);
Run This Sample
Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
