Shapes Lines Arrowheads

Adds lines using all of the various options defined in SpreadsheetGear.Shapes.ArrowheadStyle, ArrowheadLength and ArrowheadWidth.

using System;
using System.Linq;

// Create a new workbook and some local variables.
SpreadsheetGear.IWorkbook workbook = SpreadsheetGear.Factory.GetWorkbook();
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;

// Create an IEnumerable out of the various ArrowheadStyle enum options.  Note that
// "Mixed" and "None" are excluded since these aren't applicable to this sample.
var arrowheadStyles = Enum.GetValues(typeof(SpreadsheetGear.Shapes.ArrowheadStyle))
    .OfType<SpreadsheetGear.Shapes.ArrowheadStyle>()
    .Where(a => a != SpreadsheetGear.Shapes.ArrowheadStyle.Mixed &&
        a != SpreadsheetGear.Shapes.ArrowheadStyle.None)
    .ToList();

// Similarly, create an IEnumerable of ArrowheadLength options, excluding "Mixed".
var arrowheadLengths = Enum.GetValues(typeof(SpreadsheetGear.Shapes.ArrowheadLength))
    .OfType<SpreadsheetGear.Shapes.ArrowheadLength>()
    .Where(a => a != SpreadsheetGear.Shapes.ArrowheadLength.Mixed)
    .ToList();

// Similarly, create an IEnumerable of ArrowheadWidth options, excluding "Mixed".
var arrowheadWidths = Enum.GetValues(typeof(SpreadsheetGear.Shapes.ArrowheadWidth))
    .OfType<SpreadsheetGear.Shapes.ArrowheadWidth>()
    .Where(a => a != SpreadsheetGear.Shapes.ArrowheadWidth.Mixed)
    .ToList();

// Expand cell size so a line and its arrowheads better fits.
worksheet.Cells.RowHeight = 38;
worksheet.Cells.ColumnWidth = 26;

// Will use these two IRanges to "navigate" around the worksheet.  Since one IRange
// represents an entire row and the other an entire column, we can take the
// intersection of the two with IRange.Intersect(...) to isolate a specific cell
// and add a line into it.
SpreadsheetGear.IRange currentRow = worksheet.Cells["2:2"];
SpreadsheetGear.IRange currentColumn = worksheet.Cells["B:B"];

// To demonstrate including or omitting an End Arrowhead, we'll setup this counter
// to only add an End Arrowhead on every other line added.
int counter = 0;

// Loop through various Arrowhead Styles--one style for each column across the sheet.
foreach (SpreadsheetGear.Shapes.ArrowheadStyle arrowheadStyle in arrowheadStyles)
{
    // Take intersection of "currentColumn" and Row 1:1 to isolate the row header
    // cell and set its value to the Arrowhead Style.
    SpreadsheetGear.IRange rowHeaderCell = currentColumn.Intersect(worksheet.Cells["1:1"]);
    rowHeaderCell.Value = arrowheadStyle.ToString();

    // Loop through each Arrowhead Width
    foreach (SpreadsheetGear.Shapes.ArrowheadWidth arrowheadWidth in arrowheadWidths)
    {
        // Also loop through each Arrowhead Length
        foreach (SpreadsheetGear.Shapes.ArrowheadLength arrowheadLength in arrowheadLengths)
        {
            // Take intersection of "currentRow" and Column A to isolate the column
            // header cell and set its value to the ArrowheadWidth and ArrowheadLength
            // enum values
            // being used.
            SpreadsheetGear.IRange headerCol =
                currentRow.Intersect(worksheet.Cells["A:A"]);
            headerCol.Value = $"Arrowhead Width: {arrowheadWidth}\r\n" +
                $"Arrowhead Height: {arrowheadLength}";

            // Take intersection of current row and column to isolate the cell that we
            // will add the line to.
            SpreadsheetGear.IRange currentCell = currentRow.Intersect(currentColumn);

            // Calculate the position of the line.
            double xStart = windowInfo.ColumnToPoints(currentCell.Column) + 20;
            double yStart = windowInfo.RowToPoints(currentCell.Row) + 15;
            double xEnd = windowInfo.ColumnToPoints(currentCell.Column + 1) - 20;
            double yEnd = windowInfo.RowToPoints(currentCell.Row + 1) - 15;

            // Add the line and get its ILineFormat.
            SpreadsheetGear.Shapes.IShape lineShape = worksheet.Shapes.AddLine(xStart,
                yStart, xEnd, yEnd);
            SpreadsheetGear.Shapes.ILineFormat lineFormat = lineShape.Line;

            // Set the Arrowhead Style, Width and Length values.
            lineFormat.BeginArrowheadStyle = arrowheadStyle;
            lineFormat.BeginArrowheadWidth = arrowheadWidth;
            lineFormat.BeginArrowheadLength = arrowheadLength;

            // For every other line added, will do the same for the End Arrowhead.
            if (counter % 2 == 0)
            {
                lineFormat.EndArrowheadStyle = arrowheadStyle;
                lineFormat.EndArrowheadWidth = arrowheadWidth;
                lineFormat.EndArrowheadLength = arrowheadLength;
            }

            // Set the weight of the line to 5 Points.
            lineFormat.Weight = 5;

            // Choose a random Theme Color to apply to this line.
            lineFormat.ForeColor.ThemeColor = PickRandomThemeColor();

            // Move the currentRow down one row and advance the End Arrowhead counter.
            currentRow = currentRow.Offset(1, 0);
            counter++;
        }
    }
    // Move the currentColumn right one column and reset the currentRow back to 2:2.
    currentColumn = currentColumn.Offset(0, 1);
    currentRow = worksheet.Cells["2:2"];
}

// Setup some formatting of the header content.
worksheet.Cells["1:1"].HorizontalAlignment = SpreadsheetGear.HAlign.Center;
worksheet.Cells["1:1,A:A"].VerticalAlignment = SpreadsheetGear.VAlign.Center;
worksheet.Cells["1:1,A:A"].Font.Bold = true;

private static Random _rand = new Random();
private static SpreadsheetGear.Themes.ColorSchemeIndex PickRandomThemeColor()
{
    // Construct a List from the ColorSchemeIndex enum that consists of the 6 "Accent"
    // colors as well as Text1 (black).
    var colors = Enum.GetValues(typeof(SpreadsheetGear.Themes.ColorSchemeIndex))
        .OfType<SpreadsheetGear.Themes.ColorSchemeIndex>()
        .Where(c =>
            c.ToString().Contains("Accent") ||
            c == SpreadsheetGear.Themes.ColorSchemeIndex.Text1)
        .ToList();

    // Return random color from list.
    return colors[_rand.Next(colors.Count())];
}
Run This Sample

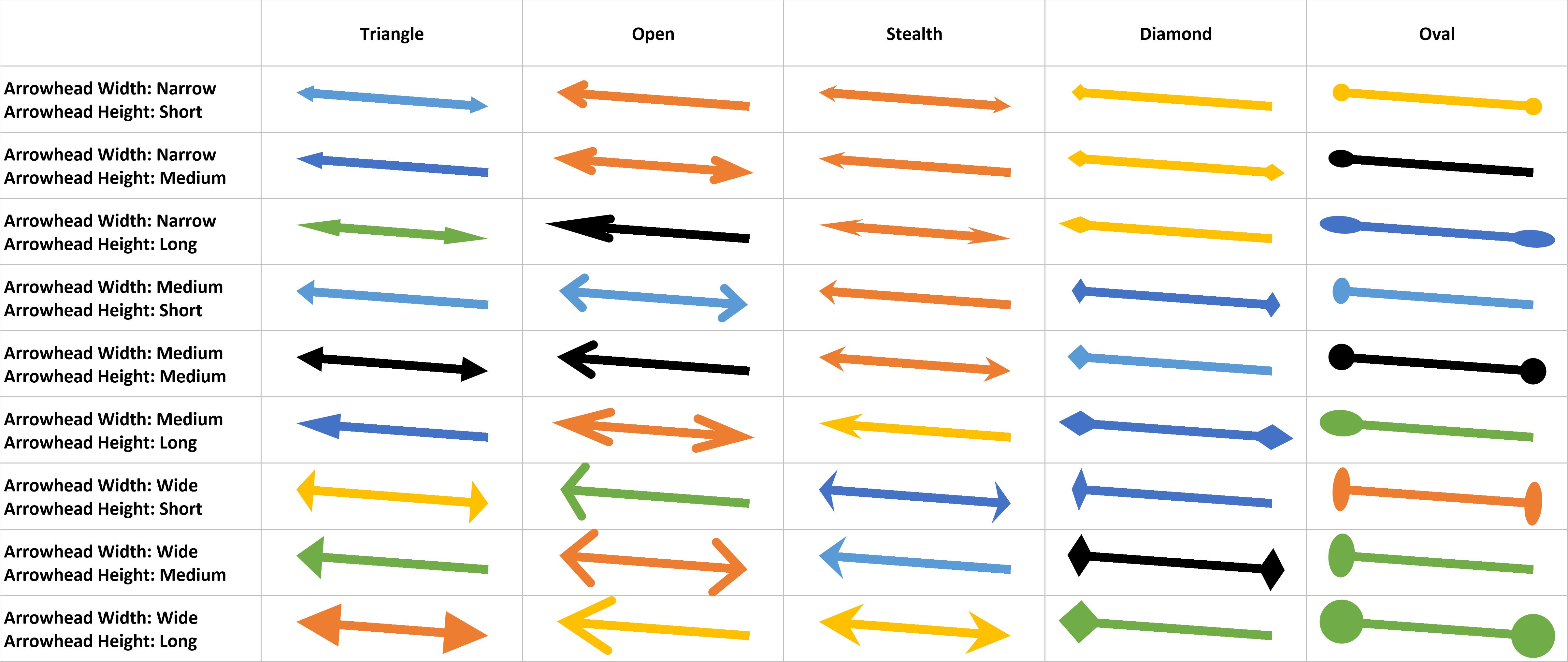

Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.


Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
