Charting Scatter Chart

Demonstrates generating a Scatter Chart where x and y data sets are plotted on a single set of axes.

// Create a new workbook and get a reference to the active worksheet, window info,
// and cells.
SpreadsheetGear.IWorkbook workbook =  SpreadsheetGear.Factory.GetWorkbook();
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;
SpreadsheetGear.IRange cells = worksheet.Cells;

// Get the chart's source data range and add some sample data.
cells["G2:J30"].Formula = "=INT(RAND() * 500) + 150"; ;

// Add a chart to the worksheet's shape collection.
// NOTE: Calculate the coordinates of the chart by converting row and column
//       coordinates to points.  Use fractional row and column values to get
//       coordinates anywhere in between row and column boundaries.
double left = windowInfo.ColumnToPoints(0.15);
double top = windowInfo.RowToPoints(0.5);
double right = windowInfo.ColumnToPoints(5.85);
double bottom = windowInfo.RowToPoints(13.5);
SpreadsheetGear.Charts.IChart chart =
    worksheet.Shapes.AddChart(left, top, right - left, bottom - top).Chart;

// Add a series and link x and y values to the source data range.
SpreadsheetGear.Charts.ISeries series1 = chart.SeriesCollection.Add();
series1.XValues = "=G2:G30";
series1.Values = "=H2:H30";

// Add a second series and link x an y values to the source data range.
SpreadsheetGear.Charts.ISeries series2 = chart.SeriesCollection.Add();
series2.XValues = "=I2:I30";
series2.Values = "=J2:J30";

// Set the chart type to XYScatter.
chart.ChartType = SpreadsheetGear.Charts.ChartType.XYScatter;

// Get a reference to the x value axis, add a title, and link the title to a cell.
SpreadsheetGear.Charts.IAxis xValueAxis =
xValueAxis.HasTitle = true;
xValueAxis.AxisTitle.Text = "X Value Axis";

// Get a reference to the y value axis, add a title, and link the title to a cell.
SpreadsheetGear.Charts.IAxis yValueAxis =
yValueAxis.HasTitle = true;
yValueAxis.AxisTitle.Text = "Y Value Axis";

// Delete the major gridlines from the y value axis.
yValueAxis.HasMajorGridlines = false;

// Delete the legend.
chart.HasLegend = false;

// Add a chart title and change the font size.
chart.HasTitle = true;
chart.ChartTitle.Text = "XY Scatter Plot";
chart.ChartTitle.Font.Size = 12;

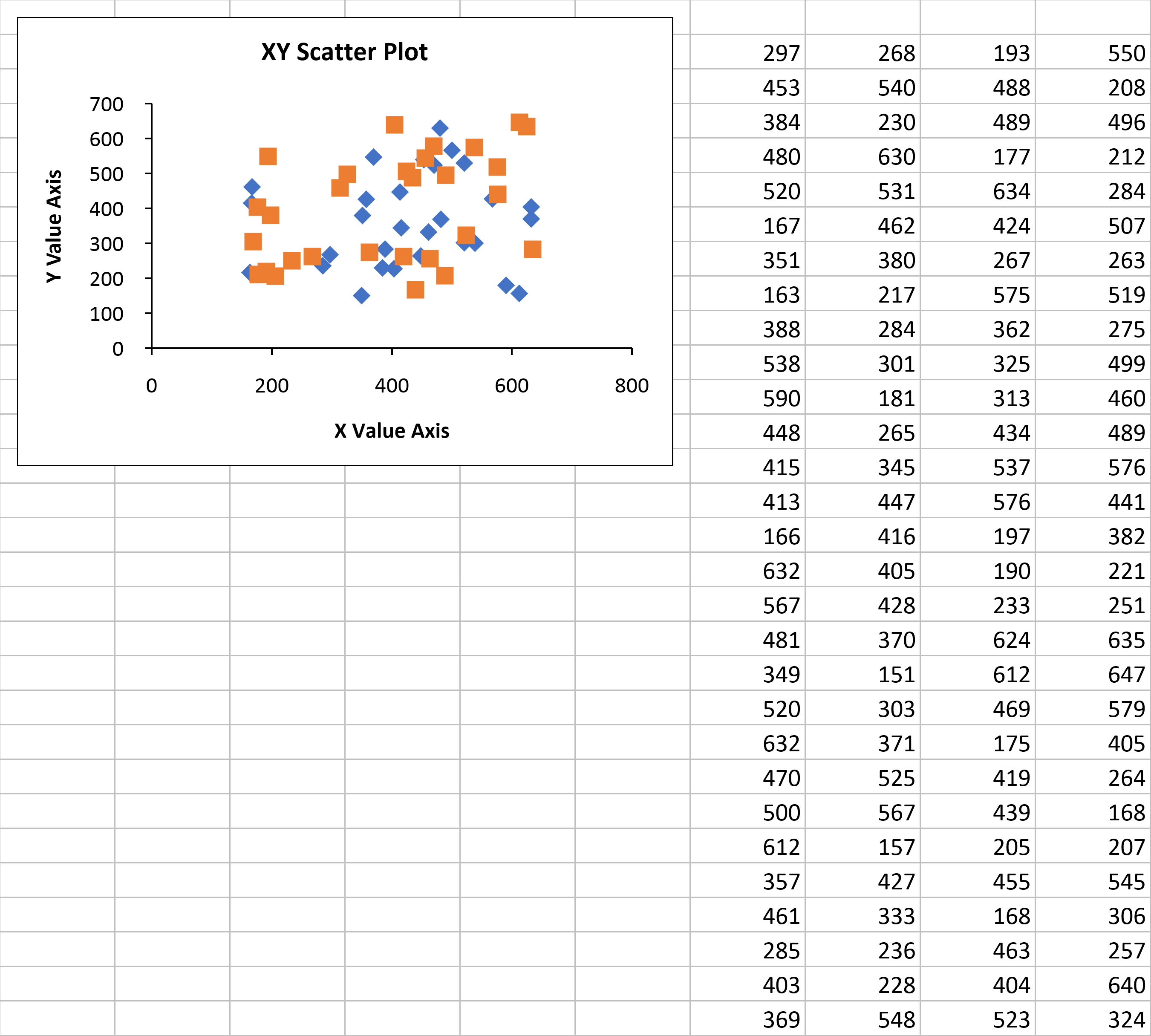

Run This Sample
Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
