Charting Radar Chart

Use a radar chart to plot each category of data on a separate value axis.

// Create a new workbook and get a reference to the active worksheet, window info,
// and cells.
SpreadsheetGear.IWorkbook workbook =
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;
SpreadsheetGear.IRange cells = worksheet.Cells;

// Add a chart to the worksheet's shape collection.
// NOTE: Calculate the coordinates of the chart by converting row and column
//       coordinates to points.  Use fractional row and column values to get
//       coordinates anywhere in between row and column boundaries.
double left = windowInfo.ColumnToPoints(0.15);
double top = windowInfo.RowToPoints(0.5);
double right = windowInfo.ColumnToPoints(5.85);
double bottom = windowInfo.RowToPoints(13.5);
SpreadsheetGear.Charts.IChart chart =
    worksheet.Shapes.AddChart(left, top, right - left, bottom - top).Chart;

// Get the source data range from an existing defined name.
SpreadsheetGear.IRange source = workbook.Names["Maintenance"].RefersToRange;

// Set the chart's source data range, plotting series in columns.
chart.SetSourceData(source, SpreadsheetGear.Charts.RowCol.Columns);

// Set the chart type to filled radar.
chart.ChartType = SpreadsheetGear.Charts.ChartType.RadarFilled;

// Add a chart title and change the font size.
chart.HasTitle = true;
chart.ChartTitle.Text = "Seasonal Maintenance Costs";
chart.ChartTitle.Font.Size = 12;
Run This Sample

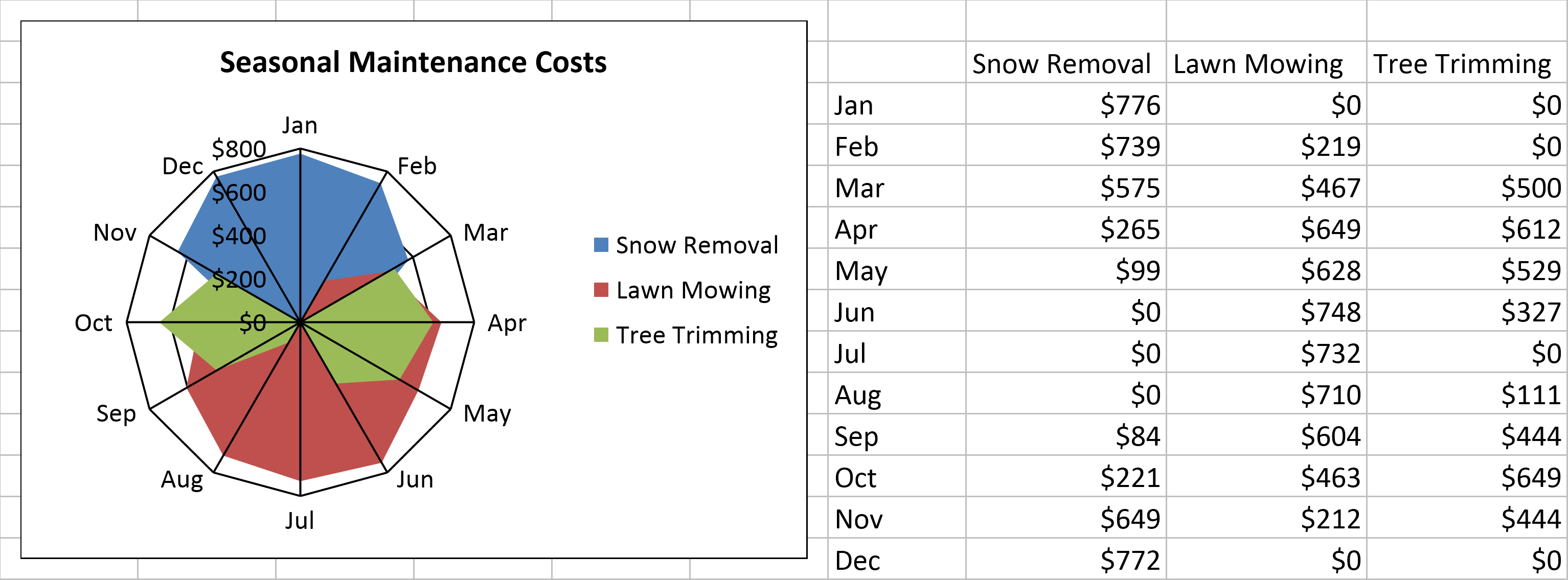

Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.

Supporting Files

The following files are utilized by this sample:
