Charting Embed Picture In Chart

Demonstrates how to embed a picture into a chart, in this case to act as a replacement for the Chart Title.

// Open workbook with a chart and get reference to active worksheet.
SpreadsheetGear.IWorkbook workbook =
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;

// Load picture into byte array (would also accept path to a file).
byte[] pictureBytes =
// Open the file as a System.Drawing.Image so that we can get its dimensions, and
// more important, the proportion between the height and width.
System.IO.MemoryStream ms = new System.IO.MemoryStream(pictureBytes);
System.Drawing.Image image = System.Drawing.Image.FromStream(ms);
double imageWidth = image.Width;
double imageHeight = image.Height;
double imageProportion = imageHeight / imageWidth;

// Get the Chart IShape and IChart objects.
SpreadsheetGear.Shapes.IShape chartShape = worksheet.Shapes["Chart 1"];
SpreadsheetGear.Charts.IChart chart = chartShape.Chart;

// Calculate size and position of picture so that it fills 75% of the  chart's
// total width, and is centered at the top of the chart.
double width = chartShape.Width * 0.75;
double height = width * imageProportion;
double left = (chartShape.Width - width) / 2;
double top = 5;
// Embed the picture.
chart.Shapes.AddPicture(pictureBytes, left, top, width, height);
Run This Sample

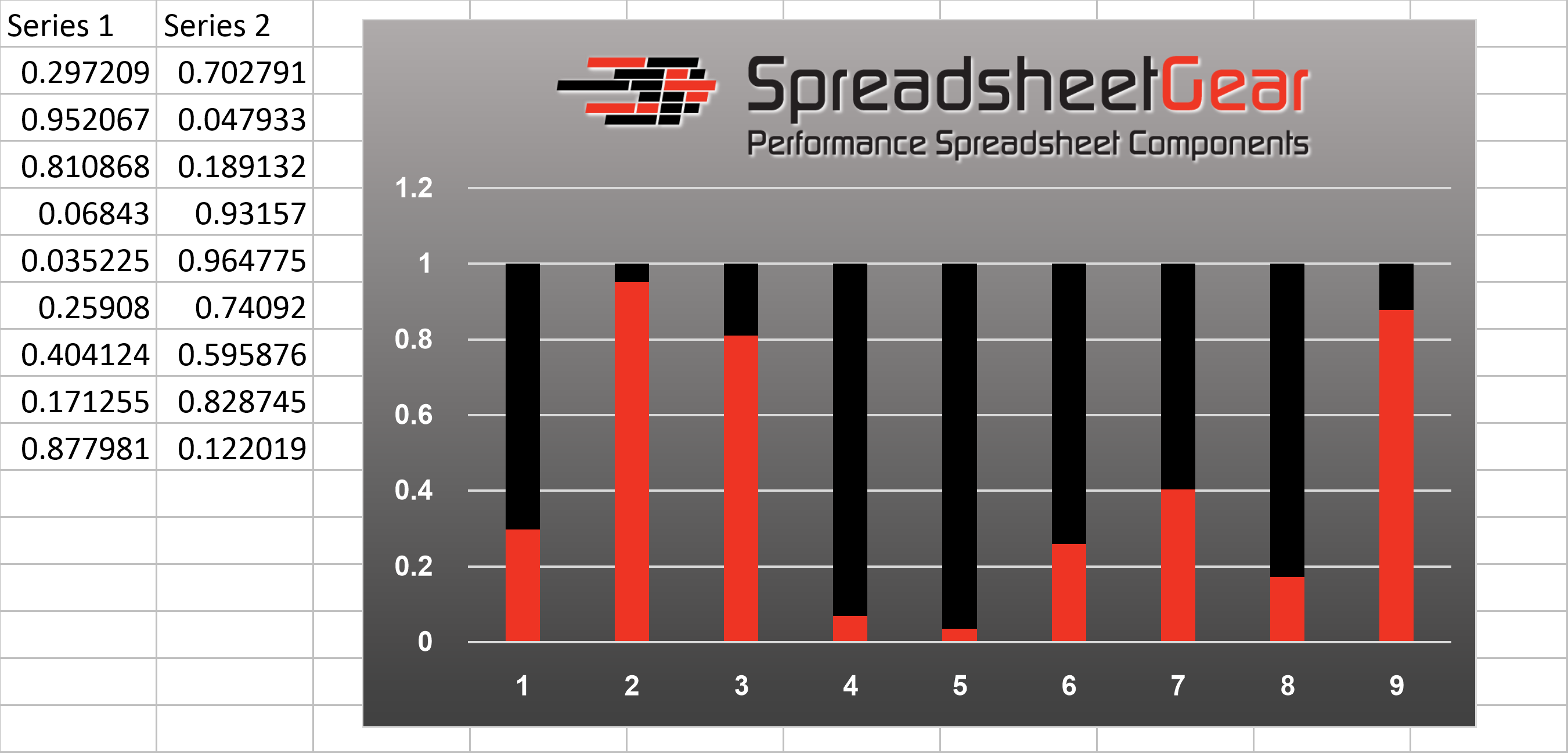

Render Image

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.

Supporting Files

The following files are utilized by this sample:
