Charting Basic Bar Chart

Demonstrates generating a basic Bar Chart.

// Open workbook with some data for the chart and get a reference to the active
// sheet and its cells.
SpreadsheetGear.IWorkbook workbook =
SpreadsheetGear.IWorksheet worksheet = workbook.ActiveWorksheet;
SpreadsheetGear.IRange cells = worksheet.Cells;

// Get a reference to the worksheet window info and shapes collection.
SpreadsheetGear.IWorksheetWindowInfo windowInfo = worksheet.WindowInfo;
SpreadsheetGear.Shapes.IShapes shapes = worksheet.Shapes;

// Add a chart to the worksheet's shape collection.
// NOTE: Calculate the coordinates of the chart by converting row and column
//       coordinates to points.  Use fractional row and column values to get
//       coordinates anywhere in between row and column boundaries.
double left = windowInfo.ColumnToPoints(0.15);
double top = windowInfo.RowToPoints(0.5);
double right = windowInfo.ColumnToPoints(5.85);
double bottom = windowInfo.RowToPoints(13.5);
SpreadsheetGear.Charts.IChart chart =
    shapes.AddChart(left, top, right - left, bottom - top).Chart;

// Get the source data range from an existing defined name.
SpreadsheetGear.IRange source = workbook.Names["RegionalSales"].RefersToRange;

// Set the chart's source data range, plotting series in columns.
chart.SetSourceData(source, SpreadsheetGear.Charts.RowCol.Columns);

// Set the chart type to a stacked bar.
chart.ChartType = SpreadsheetGear.Charts.ChartType.BarStacked;

// Set the distance between bars as a percentage of the bar width.
chart.ChartGroups[0].GapWidth = 50;

// Add a chart title and change the font size.
chart.HasTitle = true;
chart.ChartTitle.Text = "Combined Sales by Quarter";
chart.ChartTitle.Font.Size = 12;

// Get a reference to the value axis and set the gridline dash style.
SpreadsheetGear.Charts.IAxis valueAxis =
valueAxis.MajorGridlines.Format.Line.DashStyle =
Run This Sample
Render Image

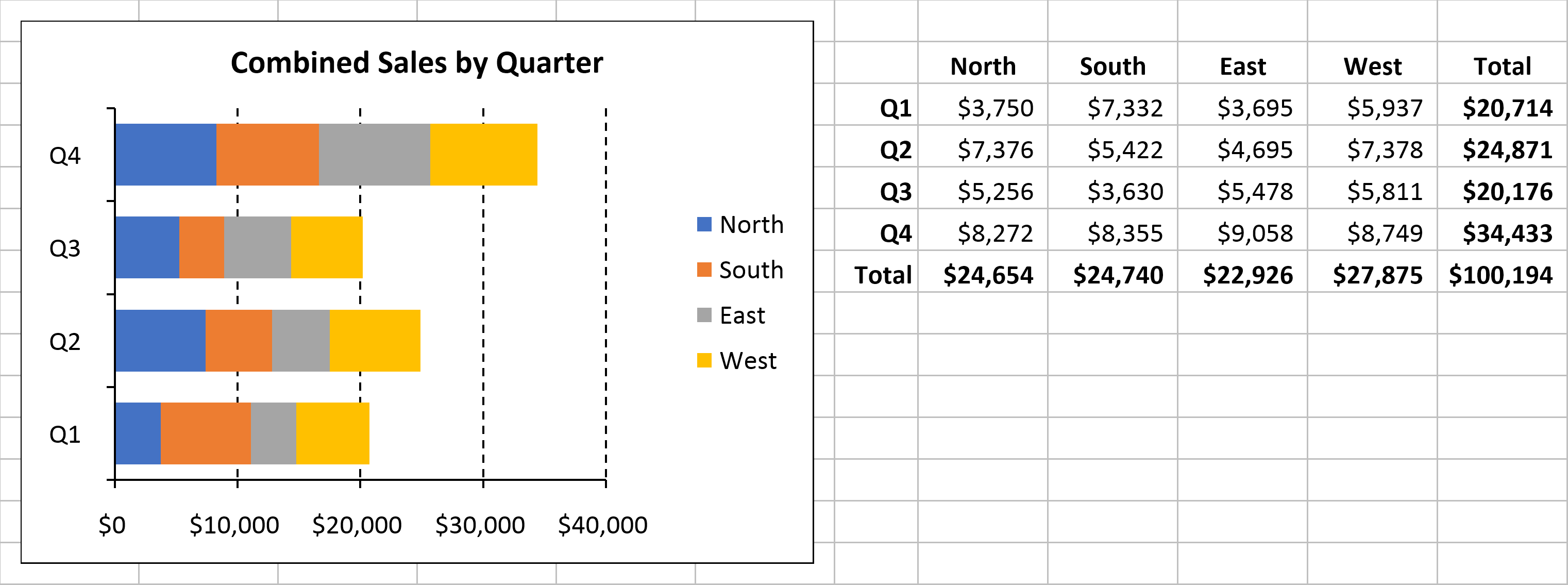

Generate an image representation of the results of this sample, which uses the SpreadsheetGear.Drawing.Image class to convert ranges, charts and shapes to images.

Download File

Download an Excel Open XML Workbook (*.xlsx) file with the results of this sample.
